VHS-4309

Magnification: 4-16X
Objective Diameter: 44mm
Eye Relief: 4 in.
Field of View @ 100 yds: 27.4-7.4 ft.
Tube Size: 30mm
Turret Style: Tactical CRS Zero Stop
Adjustment Graduation: 1/4 MOA
Travel per Rotation: 12 MOA
Max Elevation Adjustment: 75 MOA
Max Windage Adjustment: 75 MOA
Parallax Setting: 50 yards to infinity
Length: 13.7 in.
Weight: 20.8 oz.

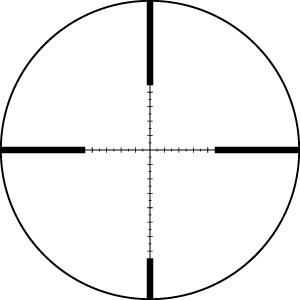

Reticle: VMR-1 (MOA)

XD Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images

XR Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Tube Size
30mm diameter

Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.

Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.

Shockproof
Rugged construction withstands recoil and impact

Hard Anodized Finish
Highly durable low-glare matte finish helps camouflage the shooter's position.

ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Exposed Tactical-Style Turrets
Provide fast, accurate and easily read elevation and windage adjustments.

Side Focus
Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal.

CRS Zero Stop
Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction.

Precision-Force Spring System
Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.

Precision-Glide Erector System
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

MAG-View Fiber Optic
Provides a highly visible reference point for the magnification setting.

Radius Bar
Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.

Fast Focus Eyepiece
Allows quick and easy reticle focusing
