SCHMIDT & BENDER Police Marksman II 5-25x56 FFP (CCW) 1 cm/.1 Mil (H2CMR Reticle) (Illuminated) (34mm Tube)
SCHMIDT & BENDER Police Marksman II 5-25x56 FFP (CCW) 1 cm/.1 Mil (H2CMR Reticle) (Illuminated) (34mm Tube)

Alternative Views:
Regular Price: $4,025.00
Our Price: $3,599.00
Savings: $426.00


Product Code: SCH6779119229068
Qty:

Description Technical Specs

SCH6779119229068
Description
The 5-25x56 PM II/LP model is the scope for universal use with big magnification and an extremely comprehensive total adjustment range. It is equipped with parallax compensation, illuminated reticle and two turns in the elevation adjustment (Double Turn). Thanks to its big magnification and comprehensive reticle adjustment the scope may be successfully used up to a distance of 2,000 meters. Parallax compensation may be adjusted starting at 10 meters and reaching to infinity. The scope may be supplied with the reticle in the first or in thsecondfocalplane.Schmidt&Bender 5-25x56 PM II/LP Scope is available with the 1st and 2nd focal plane reticles. On the first focal plane: P3L, P4L, and P4L fine, Police, Klein, H2CMR, and H37 reticles. On the second focal plane: P3L, P4L, and P4L fine reticles.

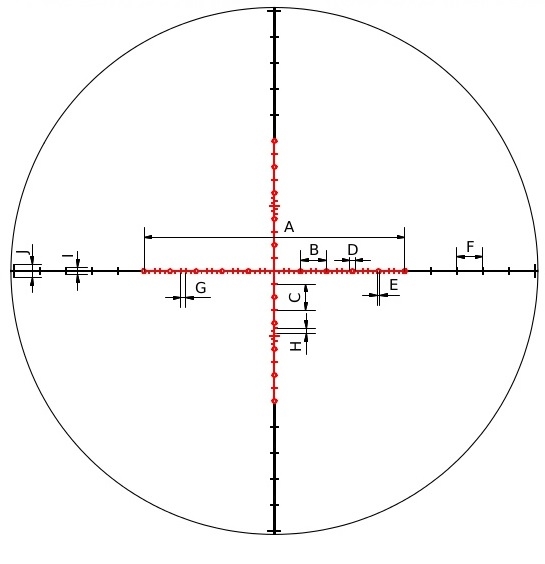

UnitABCDEFGKL
mm
inch		123,5
4.85		44,5
1.74		38,0
1.50		92,5
3.63		72,5
2.84		62,0
2.44		34,0
1.34		43,0
1.69		416,5
16.38
SKU 5-25x56 PM II/LP

TECHNICAL DATA

Field of view m/100 m5,3 - 1,5
Exit pupil diameter mm10,95 - 2,28
Eye relief distance mm90
Twilight factor14,1 - 37,4
Transmission90 %
Diopter Setting+2/-3
Parallax adjustment10 m - ∞
Weight g1080
Reticle 1st focal planeP3L / P4L / P4L fein / Police / Klein / H2CMR / H37
Reticle 2nd focal planeP3L / P4L / P4L fein
