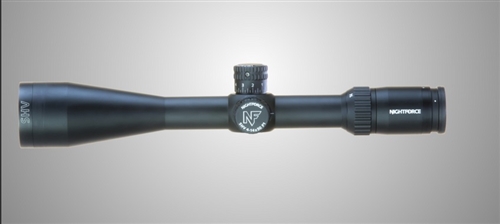

SPECIFICATIONS SHV
4-14 x50 F1
Focal Plane First
Magnification Range 4-14x
Objective lens diameter 50mm
Tube diameter 30
mm/1.18 in
Internal adjustment range (MOA/Mil) e: 90 MOA
w: 70 MOA
e: 26.2 Mil
w: 20.4 Mil
Click value .250
MOA
.1 Mil-rad
Calibrated Ranging Power N/A
Parallax adjustment 25
- ∞
Exit pupil diameter 4x:
10.8 mm
14x: 3.3 mm
Eye relief 70-80
mm/2.8 - 3.1 in
Field of view @100 yards/100 meters 4x: 25.1 ft
14x: 7.4 ft
4x: 7.65 m
14x: 2.26 m
Objective outer diameter 59
mm
Eyepiece outer diameter 43.6
mm
Overall length (inches/mm) 14.8
in/376 mm
Weight (ounces/grams) 30
oz/850g
Mounting length (inches/mm) 6.2
in/157 mm
Front/Rear Mounting Length 2.19
in/55.8 mm
PTL (Power Throw Lever) Accessory
Reticles available MOAR™;
MIL-R™
Illumination Standard
Elevation Feature ZeroSet™
